Shower Panel Engineering
Large-Format
Shower Panels.
A lightweight, large-format surface system designed to reduce the handling mass and moisture exposure associated with traditional MDF and ceramic tile.
The Operational Advantage vs MDF
Logistical Mass
Approximately 60% lighter than standard exterior-grade MDF. This massive weight drop reduces the need for multi-person handling and supports simpler on-site setup.
Moisture Dynamics (24h)
Organic wood components suffer from capillary routing failure under structural humidity shifts. Our fully polymer-limestone substrate is hydrophobic and completely rot-immune.
Scratch Resistance
Our premium WPC surface films vastly outperform the scratch resistance of standard high-pressure laminates (HPL) used on budget MDF panels, maintaining a flawless finish.
Installation Execution
Removes loud site footprint requirements completely. Requires zero specialized machinery or structural clean setups. Cuts down handling timelines clean with a simple utility knife.
Health, Safety & Environmental Compliance
Manufactured via an active Closed-loop scrap reuse where all manufacturing offcuts are systematically reground and recycled straight back into the initial blend. Zero landfill waste footprint.
| Testing Parameter | Standard | Result |
|---|---|---|
| Phthalate & Formaldehyde | REACH / RoHS Verification | Not detected in the supplied test result |
| VOC Emissions Profile | UL 2818 Methodology | Greenguard Gold Certified |
| Colour Fastness Integrity | ISO 105-B02 Light Testing | ≤ Grade 6 (Extreme Fade Immunity) |
| Structural Thermal Reaction | EN 13501-1 Class Target | Class D (Fully Certified Interior Standard) |
The Water-Stop System.
Unlike traditional composite panels that remain highly vulnerable to core swelling when joint lines break down, our engineered interlocking profiles carry a physical mechanical lock.
The structural ridge locks the panel link at a tight tolerance boundary (Max Opening ≤ 0.2mm). This provides reliable protection along the entire installation wall with no grout maintenance required.
Tolerance
Max Opening ≤ 0.2mm
Profile
Precision Tongue & Groove Lock
Application
Floor-to-Ceiling Seamless Finish
Seamless 90° Cornering.
Standard MDF requires cutting the board entirely and utilizing disruptive metal or PVC extrusion trims for corners. HPL laminate tears if folded.
Our premium WPC film acts as a highly durable hinge. Installers simply groove the back of the SPC core, apply gentle heat, and fold the panel 90 degrees. This creates a flawless, continuous outer corner with zero metal trims required.
Premium WPC Film
Significantly thicker and richer in depth than standard budget PVC films used by competitors.
Grade 6 Colour Fastness
Finished with UV Curing or pressed PET to ensure extreme resistance to sun fading over decades.
Application
Trimless Outer Corners
Finish
Premium WPC Film

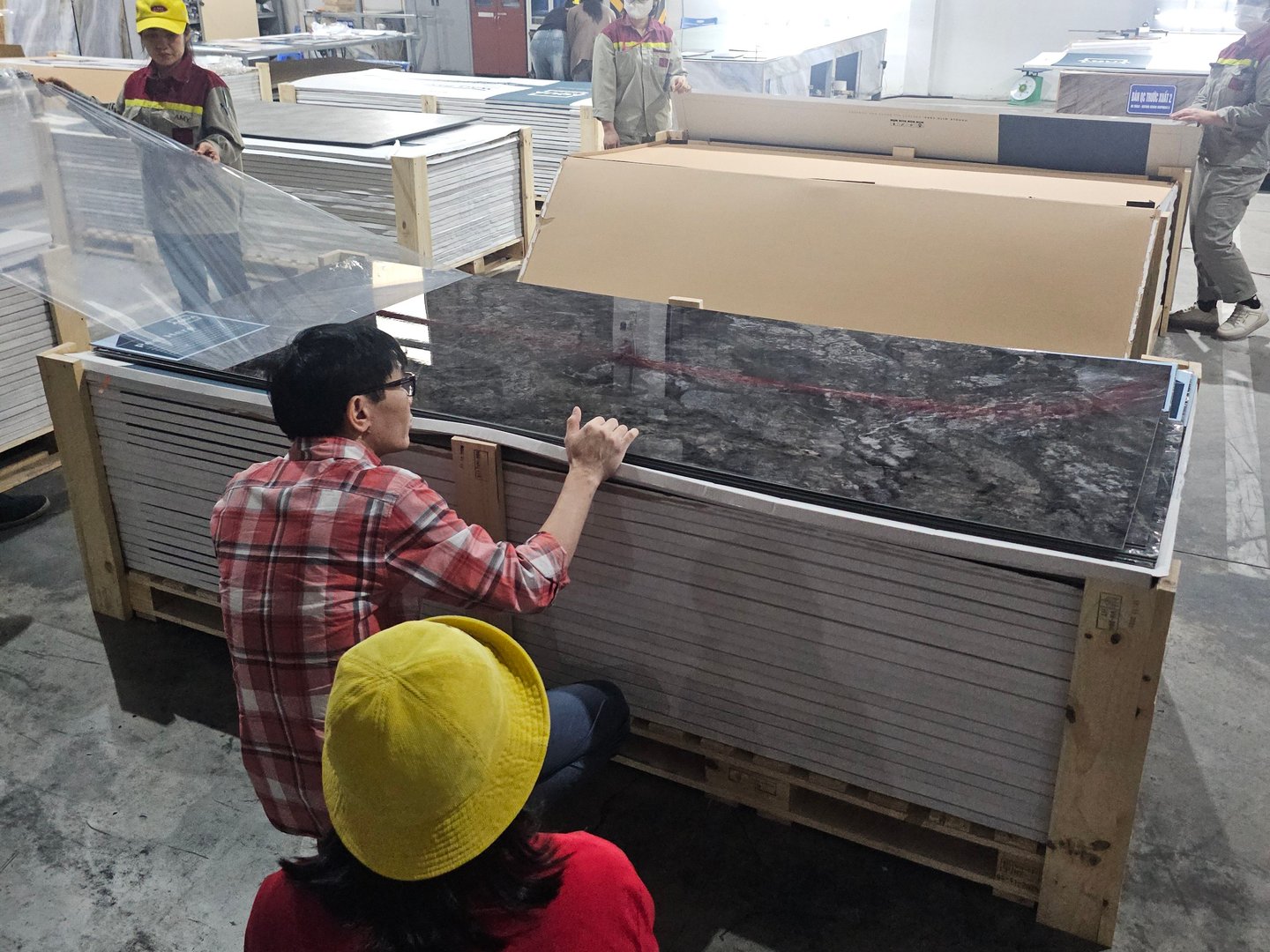

Floor-Level QA
Intertek PSI Protocols.
Pre-Shipment Inspection requirements are agreed for each program and documented before release. Where Intertek is appointed, its signed report and photographed findings are linked to the order so dimensional, gloss and joint checks can be reviewed before shipment.
Intertek QA
Dimensional Tolerance
Intertek QA
Surface Defect Check
Intertek QA
Gloss Level Verification
Intertek QA
Squareness Check
Design
Bespoke Curation & Decors
